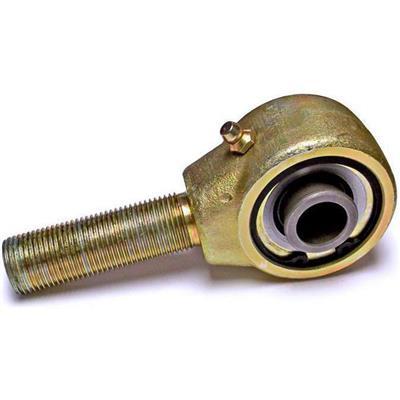

RockJock Narrow Forged Johnny Joint – CE-9112N75-13

RockJock’s narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2″ diameter, fitted with a zerk fitting for greasing, 2 1/4″ of 3/4″-16 right hand threads on the shank, and a 1.600″ mounting width ball with a .562″ thru bolt hole. Finished in gold zinc plating.

• RockJock 4×4 | Part Number: R/JCE-9112N75-13
• Fitment:Universal Fit
