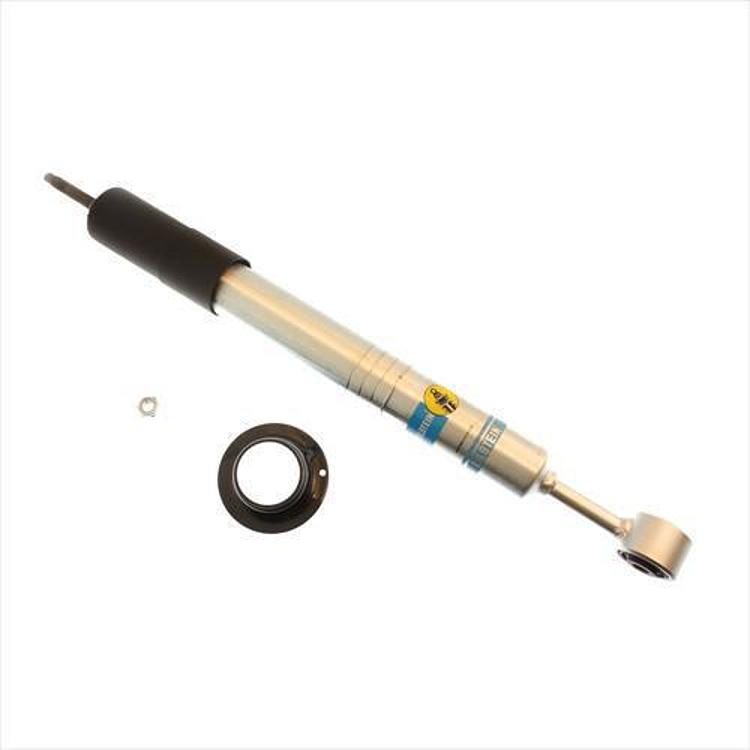

Bilstein 5100 Series Ride Height Adjustable Shock Absorber – 24-196499
Availability:
Only 2 left in stock
- Bilstein 5100 Series Ride Height Adjustable Shock Absorber
- Collapsed Length (in.): 17.58
- Extended Length (in.): 22.48
- Travel Length (IN): 4.90
- Shaft Diameter: 14mm
- Reservoir: No
- Finish: Zinc Plated
- Body Design: 46mm ID snap ring grooved body (Coilover)
- Internal Design: Mono tube
- Boot Included: No
$309.29
Only 2 left in stock
Description
Bilstein 5100 Series Ride Height Adjustable Shock Absorbers are designed for front coilover style pickup suspensions. The monotube shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. Multiple snap-ring grooves in the shock body allow for different spring seat positions, providing 0″-2.5″ of front end lift, depending on application. Provides increased wheel travel and improved handling! (zinc-plated steel body, Triple-C-Technology coating)
- Bilstein | Part Number: BIL24-196499
- Shock Series:46mm Monotube
- Position:Front
- Fitment:Direct Fit
- LiftHeight:w/0 – 2.5 in. Lift
- Hydraulic / Gas Charged :Gas Charged
Specification
| Weight | 5.62 lbs |
|---|---|
| Dimensions | 26.80 × 3.60 × 3.60 in |
